Single-head wood block machine

Posted on by thoyu
single head wood pallet block machine
single head wood pallet block machine
single head wood pallet block machine
single head wood pallet block machine
single head wood pallet block machine
single head wood pallet block machine
single head wood pallet block machine
single head wood pallet block machine
single head wood pallet block machine
previous arrow
next arrow

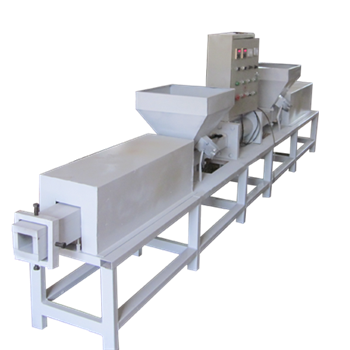

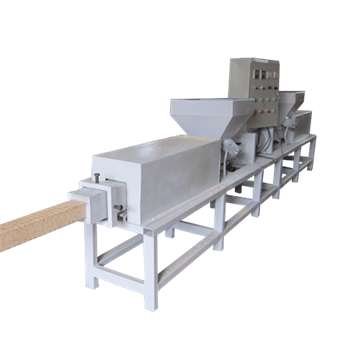

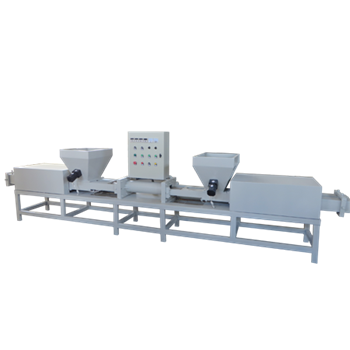

wood block machine with single-head

  • Height: 75-145mm Width: 75-145mm
  • Power:12-19Kw
  • Glue Consumption:70-90 kg/m³(calculated as 550kg/m³)
  • Density of final product:550-600kg/m³
  • Capacity:2-5m³/24h
  • Voltage:380V,3phase,50Hz(motor could be customised)
  • Weight:1000kg
  • Dimension:5500*600*1500mm

Introduction of Wood Block Machine

wood block machine is used to make euro pallet blocks which is used into the transportation and packing. The pallet block's size can be made by customer's demands. The end product is with a hole inside or the solid one.

The raw material is sawdust and wood shavings, also the glue(urea-formaldehyde resin).

automatic wood pallet block machine production line
Automatic Wood Pallet Block Machine Production Line

The advantages of final product from Wood Block Machine

A. free of fumigation. Because the block is made by hot pressing, it is free of fumigation.

B. it could recycle the wood waste efficiently.

C. easy to operate. one person could handle 3 machines.

D. The density of the final product could get to 550-800kg/CBM. You can choose what you need.

Block Sizes

Normally 90*90mm, 90*100mm, 100*100mm,80*90mm. If you have special requirements, we could customize while it is at the range from 75mm to 145mm. Besides, one machine could make two different block sizes.

Parameters of Wood Block Machine

Size(mm) Weight(kg) Power(Kw) Density(kg/m3) Capacity(m3/24h)
5000*500*1300 900 18 550-600kg 1.4-5.4
Block size: 75-140 in width, 75-140 in length. Customized by customer required.
