Automatic wood pallet block machine

This wood sawdust block making machine is used to make blocks/feet/log for pallets, which is can be used in packing industry and logistics.

1.Our Automatic wood pallet block machine line is mainly made up of Crusher, Dryer, Glue Mixing Machine, Press Machine and Saw to cut the block piece by piece.
2.The raw material for Automatic wood pallet block machine is sawdust, wood shavings, waste wood, used pallet and so on. If the raw material size is not very big we do not suggest crushing first.
3.The pallet block’s size can be made by customer’s demands.

4.Process of Producing Automatic wood pallet block machine:Crush wood branches, biomass, used pallets, wood logs, waste wood etc into powder, wood shavings or wood chips;Dry the raw materials into certain moisture as 10%;Mix materials with glue water.

5.Process of Producing Automatic wood pallet block machine:Crush wood branches, biomass, used pallets, wood logs, waste wood etc into powder, wood shavings or wood chips;Dry the raw materials into certain moisture as 10%;Mix materials with glue water.

6. Wood sawdust block making machine Equipment investment recoupment period:

10— 12 months.



Technical Parameters of Automatic wood pallet block machine

Model Length and width of block Power (kW) Production efficiency(m³/24 hours) Dimension with saw (m) Weight (kg)
TYS

75-145 mm

14.26 2-3 8*0.6*1.5 1000
TYD

75-145 mm

22.26 4-6 8*0.7*1.5 1500
TYT

75-145

30.26 5-9 8*0.7*1.5 2000

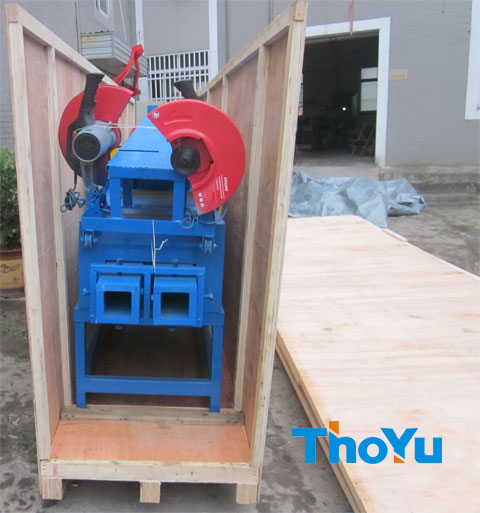

Picture of Automatic wood pallet block machine

Automatic wood pallet block machine Automatic wood pallet block machine Automatic wood pallet block machine Automatic wood pallet block machine

High efficenty wood pallet block hot press machine line

20170719 134415

1. Wood crushing machine   2. Belt conveyor   3. Silo   4. Rotary drum dryer   5. Dust collector   6. Glue mixer  7. Bucket elevator   8. sawdust block making machine
